GT2560 (aka GT28R)

PRODUCT DESCRIPTION:
Dual Ball Bearing Garrett GT2560R (aka GT28R) Turbo. Excellent responding turbo for 4 cylinder applications. The Garrett GT2560R has a flow capacity of approximately 310HP.

Available with internally gated or externally gated turbine housing options. Internal Wastegate Actuator & bracket ONLY included with internally gated turbine housing options.

NOTE: Internal wastegate is NOT included with externally gated v-band inlet and v-band outlet turbine housing.

COMPRESSOR INFORMATION:
- Compressor Wheel: 60mm w/ 60 trim

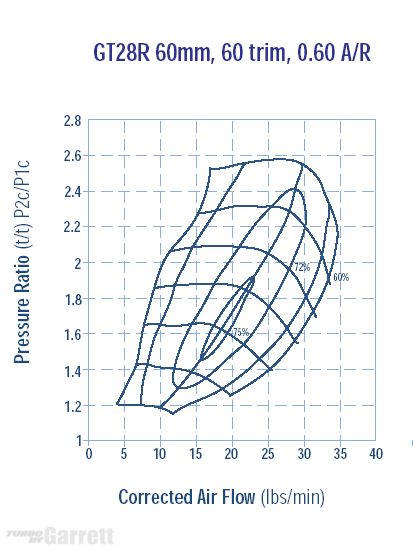

- Compressor Map

COMPRESSOR HOUSING OPTIONS:
- Standard GT2560R (aka GT28R) .60 A/R
- Optional compact GT2554R (aka GT25R) .80 A/R

TURBINE INFORMATION:
- Turbine Wheel: 53mm w/ 62 trim
- Turbine Map

TURBINE HOUSING OPTIONS:
- T25 Inlet, 5 bolt GT outlet, internally gated, .64 A/R and includes internal wastegate actuator (DEFAULT OPTION).
- V-band inlet (machined from T25 flange), 5 bolt GT outlet, internally gated, .64 A/R and includes internal wastegate actuator (Additional +$50.00).
- V-band inlet, V-band outlet, externally gated, .64 A/R and NO internal wastegate actuator and bracket.
- T3 Inlet; 5 bolt (Ford style) outlet, .48 A/R, and configured as internal or external wastegate. NO internal wastegate actuator and bracket.
